Circuit Diagram - TW Receivers - Görler IF,NL & AF Modules

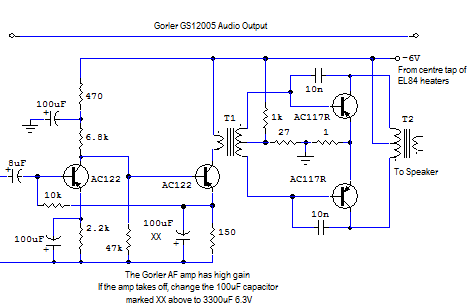

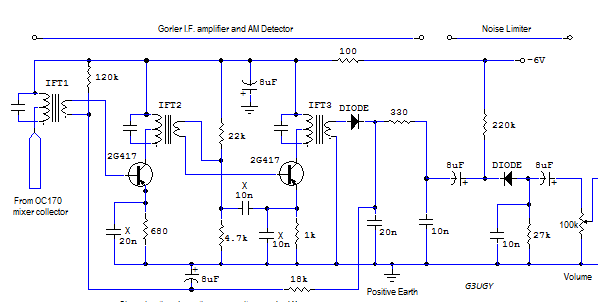

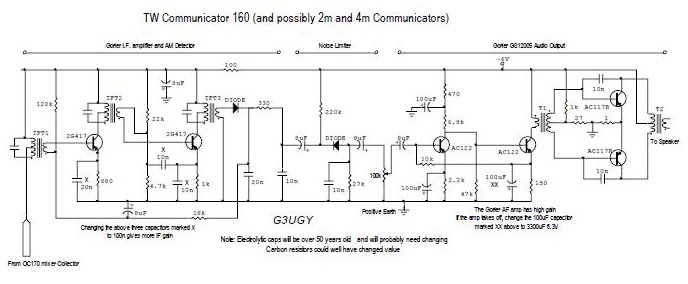

The re-drawn circuit diagrams below have kindly been provided by John G3UGY.  For clarity, the full circuit has been split into two higher resolution sections in the lower two diagrams.
